Chemola ThredOn Copperhead Drill Pipe & Drill Collar Compound
Chemola ThredOn Copperhead Drill Pipe & Drill Collar Compound
SKU:
Couldn't load pickup availability
Key Features:
- Mineral base oil, lithium complex base grase.
- With copper flake, rust inhibitors and EP additives.
- Premium drill pipe and drill collar compound.
- High-temp stability, solid lubricants protect to 1500ºF.
- Premium anti-seize compound and high-temperature lubricant.
Description:
Chemola™ ThredOn® Copperhead is a premium environmentally friendly drill collar and tool joint compound formulated to prevent downhole make-up even under high drilling torques. It contains copper flake and other time proven solid lubricants and additives in a high quality grease base. It resists water washout and provides easier breakout without galling. Contains no lead.
Typical Applications:
Typical applications include oilfield threaded connections such as drill pipe, tool joints, casing, and tubing, along with heavy-duty fasteners and flanges exposed to high torque, temperature, and wet conditions where protection against galling and seizure is required. Do not use on oxygen service.
Packaging:

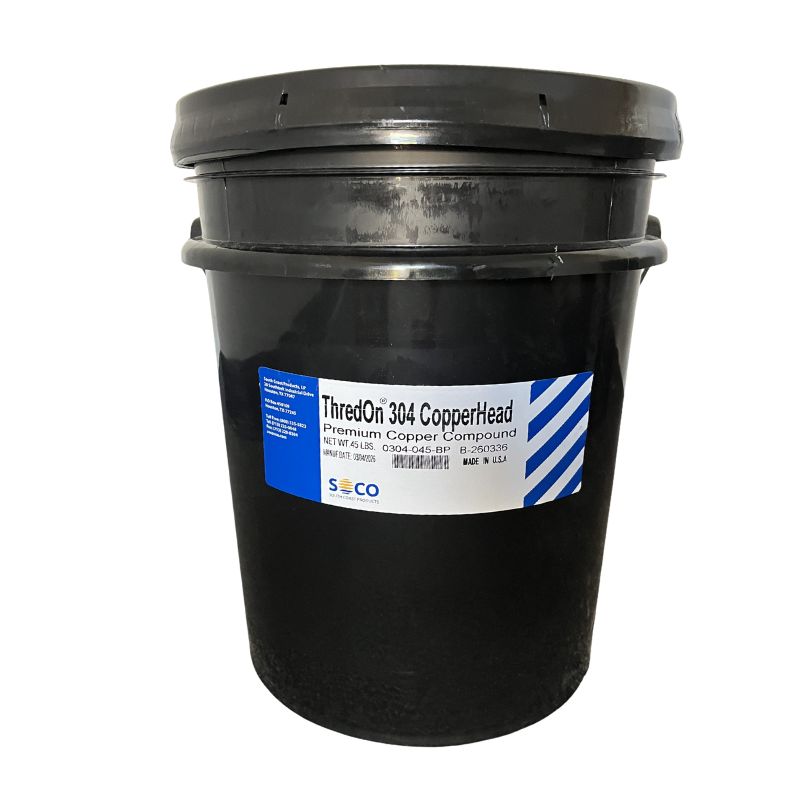

Available in 5 Gallon plastic pails. Contact Us if you need this product in a different presentation.
Typical Properties:

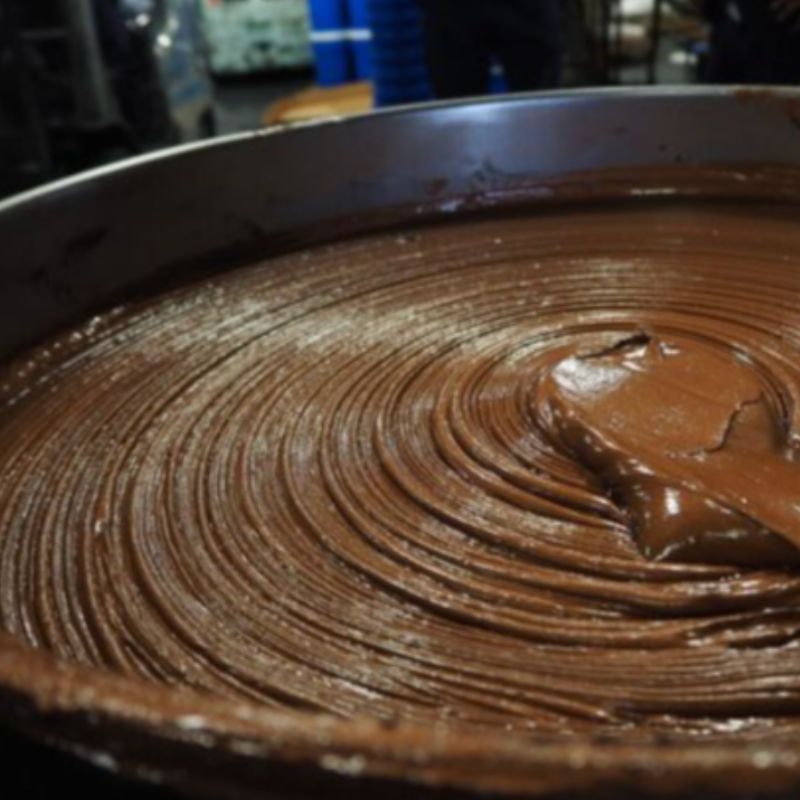

| Appearance | Copper, smooth |
|---|---|
| NLGI | 1 |
| Penetration (ASTM D217) | 300-330 |
| Worked Penetration, 60x (ASTM D217) | 300-330 |
| Base Oil | Mineral oil |
| Base Oil Viscosity | 140 cSt at 40°C |
| Base Oil Viscosity | 10 cSt at 100ºC |
| Base Oil Pour Point | -10ºF (-23ºC) |
| Base Grease | Lithium Complex |
| Specific Gravity | 1.2 |
| Density (lb/gal) | 9.8 |
| Dropping Point (ASTM D566) | 500ºF (260ºC) |
| Flash Point | 430ºF (221ºC) |
| Temperature Range | 0°F to 500°F (-18°C to 260°C) |
| Four-Ball EP Weld Point (ASTM D2596) | 620 kgf |
| Friction Factor (API 7A1) | 1.1 (can be torqued to 1.15) |
| Brushable To | 0ºF (-18ºC) |
| Sulfur Content | <0.15% |
